    imageellipse

    (PHP 4 >= 4.0.6, PHP 5, PHP 7, PHP 8)

    imageellipse — Draw an ellipse

    Descrizione

    imageellipse(
        GdImage $image,
        int $center_x,
        int $center_y,
        int $width,
        int $height,
        int $color
    ): bool

    Draws an ellipse centered at the specified coordinates.

    Elenco dei parametri


    Una risorsa immagine, restituita da una delle funzioni di creazione immagine, come imagecreatetruecolor().

    center_x

    x-coordinate of the center.

    center_y

    y-coordinate of the center.

    width

    The ellipse width.

    height

    The ellipse height.

    color

    The color of the ellipse. A color identifier created with imagecolorallocate().

    Valori restituiti

    Restituisce true in caso di successo, false in caso di fallimento.

    Log delle modifiche

    Versione Descrizione
    8.0.0 image expects a GdImage instance now; previously, a valid gd resource was expected.

    Esempi

    Example #1 imageellipse() example

    <?php

    // Create a blank image.
    $image = imagecreatetruecolor(400, 300);

    // Select the background color.
    $bg = imagecolorallocate($image, 0, 0, 0);

    // Fill the background with the color selected above.
    imagefill($image, 0, 0, $bg);

    // Choose a color for the ellipse.
    $col_ellipse = imagecolorallocate($image, 255, 255, 255);

    // Draw the ellipse.
    imageellipse($image, 200, 150, 300, 200, $col_ellipse);

    // Output the image.
    header("Content-type: image/png");
    imagepng($image);

    ?>

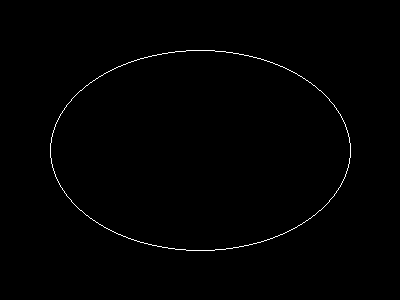

    Il precedente esempio visualizzerà qualcosa simile a:

    Output of example : imageellipse()

    Note

    Nota:

    imageellipse() ignores imagesetthickness().

    Vedere anche:

    Found A Problem?

    Learn How To Improve This Page • Submit a Pull Request • Report a Bug
    ＋add a note

    User Contributed Notes 3 notes

    up
    -1
    simon_nuttall at hotmail dot com
    18 years ago
    This is an optimised and bug fixed version of nojer at yahoo dot com's rotatedellipse function. I've changed it so that the arguments are compatible with imageellipse. See notes on imagearc for original version.

    <?php

    function rotatedellipse($im, $cx, $cy, $width, $height, $rotateangle, $colour, $filled=false) {
    // modified here from nojer's version
    // Rotates from the three o-clock position clockwise with increasing angle.
    // Arguments are compatible with imageellipse.

    $width=$width/2;
    $height=$height/2;

    // This affects how coarse the ellipse is drawn.
    $step=3;

    $cosangle=cos(deg2rad($rotateangle));
    $sinangle=sin(deg2rad($rotateangle));

    // $px and $py are initialised to values corresponding to $angle=0.
    $px=$width * $cosangle;
    $py=$width * $sinangle;

    for (    $angle=$step; $angle<=(180+$step); $angle+=$step) {

    $ox = $width * cos(deg2rad($angle));
    $oy = $height * sin(deg2rad($angle));

    $x = ($ox * $cosangle) - ($oy * $sinangle);
    $y = ($ox * $sinangle) + ($oy * $cosangle);

    if (    $filled) {
    triangle($im, $cx, $cy, $cx+$px, $cy+$py, $cx+$x, $cy+$y, $colour);
    triangle($im, $cx, $cy, $cx-$px, $cy-$py, $cx-$x, $cy-$y, $colour);
    } else {
    imageline($im, $cx+$px, $cy+$py, $cx+$x, $cy+$y, $colour);
    imageline($im, $cx-$px, $cy-$py, $cx-$x, $cy-$y, $colour);
    }
    $px=$x;
    $py=$y;
    }
    }

    function     triangle($im, $x1,$y1, $x2,$y2, $x3,$y3, $colour) {
    $coords = array($x1,$y1, $x2,$y2, $x3,$y3);
    imagefilledpolygon($im, $coords, 3, $colour);
    }

    ?>
    up
    -1
    julian
    19 years ago
    if you want to display an ellipse in the upper left corner of an image, you can easily calculate the corresponding cx and cy values. this example will draw an ellipse having the same width and height as the image.

    <?php

    $ellipse_width     = 100;
    $ellipse_height = 200;

    $ellipse_cx = ($ellipse_width / 2);
    $ellipse_cy = ($ellipse_height / 2);

    $img_x = $ellipse_width;
    $img_y = $ellipse_height;

    $img = imagecreate($img_x, $img_y);
    $bg = imagecolorallocate($img, 255,255,255);

    $ellipse_color = imagecolorallocate($img, 0, 0, 0);

    imageellipse($img, $ellipse_cx, $ellipse_cy, $ellipse_width, $ellipse_height, $ellipse_color);

    header("Content-type: image/png");
    imagepng($img);
    imagedestroy($img);

    ?>
    up
    -2
    agentyoungsoo at hanmail dot net
    21 years ago
    When you wana use "ImageEllipse" function
    in under GD 2.0.2 version, you can use "ImageArc" like bellow

    ----------------------------------------------------
    $file_name = "test.png";

    $screen_x = 300;
    $screen_y = 200;

    $x1 = $screen_x / 2;
    $y1 = $screen_y / 2;

    $radius = 30;

    $image = ImageCreate($screen_x, $screen_y);
    $black = ImageColorAllocate($image, 0,0,0);

    ImageArc($image, $x1, $y1, $radius , $radius , 0, 360, $black);

    ImagePng($image, $file_name);
    ImageDestroy($image);
    ----------------------------------------------------
