imageellipse

(PHP 4 >= 4.0.6, PHP 5, PHP 7, PHP 8)

imageellipse楕円を描画する

説明

imageellipse(
    GdImage $image,
    int $center_x,
    int $center_y,
    int $width,
    int $height,
    int $color
): bool

指定した座標を中心とする楕円を描画します。

パラメータ


imagecreatetruecolor()のような画像作成関数が返す GdImage オブジェクト。

center_x

中心の x 座標。

center_y

中心の y 座標。

width

楕円の幅。

height

楕円の高さ。

color

楕円の色。imagecolorallocate() で作成された色識別子。

戻り値

成功した場合に true を、失敗した場合に false を返します。

変更履歴

バージョン 説明
8.0.0 image は、 GdImage クラスのインスタンスを期待するようになりました。 これより前のバージョンでは、有効な gd resource が期待されていました。

例1 imageellipse() の例

<?php

// 空の画像を生成します
$image = imagecreatetruecolor(400, 300);

// 背景色を選択します
$bg = imagecolorallocate($image, 0, 0, 0);

// 上で選択した色で背景を塗ります
imagefill($image, 0, 0, $bg);

// 楕円の色を選択します
$col_ellipse = imagecolorallocate($image, 255, 255, 255);

// 楕円を描画します
imageellipse($image, 200, 150, 300, 200, $col_ellipse);

// 画像を出力します
header("Content-type: image/png");
imagepng($image);

?>

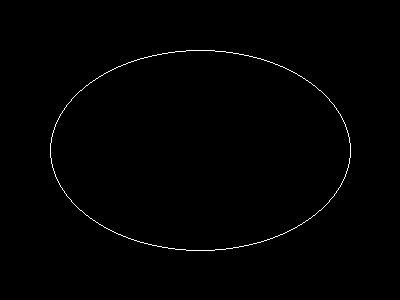

上の例の出力は、 たとえば以下のようになります。

出力例 : imageellipse()

注意

注意:

imageellipse()imagesetthickness() を無視します。

参考

add a note

User Contributed Notes 3 notes

up
-1
simon_nuttall at hotmail dot com
17 years ago
This is an optimised and bug fixed version of nojer at yahoo dot com's rotatedellipse function. I've changed it so that the arguments are compatible with imageellipse. See notes on imagearc for original version.

<?php

function rotatedellipse($im, $cx, $cy, $width, $height, $rotateangle, $colour, $filled=false) {
// modified here from nojer's version
// Rotates from the three o-clock position clockwise with increasing angle.
// Arguments are compatible with imageellipse.

$width=$width/2;
$height=$height/2;

// This affects how coarse the ellipse is drawn.
$step=3;

$cosangle=cos(deg2rad($rotateangle));
$sinangle=sin(deg2rad($rotateangle));

// $px and $py are initialised to values corresponding to $angle=0.
$px=$width * $cosangle;
$py=$width * $sinangle;

for (
$angle=$step; $angle<=(180+$step); $angle+=$step) {

$ox = $width * cos(deg2rad($angle));
$oy = $height * sin(deg2rad($angle));

$x = ($ox * $cosangle) - ($oy * $sinangle);
$y = ($ox * $sinangle) + ($oy * $cosangle);

if (
$filled) {
triangle($im, $cx, $cy, $cx+$px, $cy+$py, $cx+$x, $cy+$y, $colour);
triangle($im, $cx, $cy, $cx-$px, $cy-$py, $cx-$x, $cy-$y, $colour);
} else {
imageline($im, $cx+$px, $cy+$py, $cx+$x, $cy+$y, $colour);
imageline($im, $cx-$px, $cy-$py, $cx-$x, $cy-$y, $colour);
}
$px=$x;
$py=$y;
}
}

function
triangle($im, $x1,$y1, $x2,$y2, $x3,$y3, $colour) {
$coords = array($x1,$y1, $x2,$y2, $x3,$y3);
imagefilledpolygon($im, $coords, 3, $colour);
}

?>
up
-1
julian
19 years ago
if you want to display an ellipse in the upper left corner of an image, you can easily calculate the corresponding cx and cy values. this example will draw an ellipse having the same width and height as the image.

<?php

$ellipse_width
= 100;
$ellipse_height = 200;

$ellipse_cx = ($ellipse_width / 2);
$ellipse_cy = ($ellipse_height / 2);

$img_x = $ellipse_width;
$img_y = $ellipse_height;

$img = imagecreate($img_x, $img_y);
$bg = imagecolorallocate($img, 255,255,255);

$ellipse_color = imagecolorallocate($img, 0, 0, 0);

imageellipse($img, $ellipse_cx, $ellipse_cy, $ellipse_width, $ellipse_height, $ellipse_color);

header("Content-type: image/png");
imagepng($img);
imagedestroy($img);

?>
up
-2
agentyoungsoo at hanmail dot net
21 years ago
When you wana use "ImageEllipse" function
in under GD 2.0.2 version, you can use "ImageArc" like bellow

----------------------------------------------------
$file_name = "test.png";

$screen_x = 300;
$screen_y = 200;

$x1 = $screen_x / 2;
$y1 = $screen_y / 2;

$radius = 30;

$image = ImageCreate($screen_x, $screen_y);
$black = ImageColorAllocate($image, 0,0,0);

ImageArc($image, $x1, $y1, $radius , $radius , 0, 360, $black);

ImagePng($image, $file_name);
ImageDestroy($image);
----------------------------------------------------
