Compound Types

Things get a tad more complex with compound types such as arrays and objects. As opposed to scalar values, arrays and objects store their properties in a symbol table of their own. This means that the following example creates three zval containers:

Örnek 5 Creating a array zval

<?php
$a = array( 'meaning' => 'life', 'number' => 42 );
xdebug_debug_zval( 'a' );
?>

Yukarıdaki örnek şuna benzer bir çıktı üretir:

a: (refcount=1, is_ref=0)=array (
   'meaning' => (refcount=1, is_ref=0)='life',
   'number' => (refcount=1, is_ref=0)=42
)

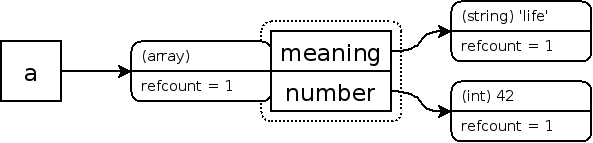

Or graphically

The three zval containers are: a, meaning, and number. Similar rules apply for increasing and decreasing "refcounts". Below, we add another element to the array, and set its value to the contents of an already existing element:

Örnek 6 Adding already existing element to an array

<?php
$a = array( 'meaning' => 'life', 'number' => 42 );
$a['life'] = $a['meaning'];
xdebug_debug_zval( 'a' );
?>

Yukarıdaki örnek şuna benzer bir çıktı üretir:

a: (refcount=1, is_ref=0)=array (
   'meaning' => (refcount=2, is_ref=0)='life',
   'number' => (refcount=1, is_ref=0)=42,
   'life' => (refcount=2, is_ref=0)='life'
)

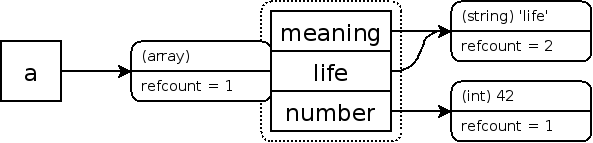

Or graphically

From the above Xdebug output, we see that both the old and new array elements now point to a zval container whose "refcount" is 2. Although Xdebug's output shows two zval containers with value 'life', they are the same one. The xdebug_debug_zval() function does not show this, but you could see it by also displaying the memory pointer.

Removing an element from the array is like removing a symbol from a scope. By doing so, the "refcount" of a container that an array element points to is decreased. Again, when the "refcount" reaches zero, the variable container is removed from memory. Again, an example to show this:

a: (refcount=1, is_ref=0)=array (
   'life' => (refcount=1, is_ref=0)='life'
)

Now, things get interesting if we add the array itself as an element of the array, which we do in the next example, in which we also sneak in a reference operator, since otherwise PHP would create a copy:

Örnek 8 Adding the array as an element of itself

<?php
$a = array( 'one' );
$a[] =& $a;
xdebug_debug_zval( 'a' );
?>

Yukarıdaki örnek şuna benzer bir çıktı üretir:

a: (refcount=2, is_ref=1)=array (
   0 => (refcount=1, is_ref=0)='one',
   1 => (refcount=2, is_ref=1)=...
)

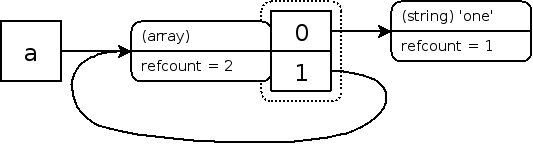

Or graphically

You can see that the array variable (a) as well as the second element (1) now point to a variable container that has a "refcount" of 2. The "..." in the display above shows that there is recursion involved, which, of course, in this case means that the "..." points back to the original array.

Just like before, unsetting a variable removes the symbol, and the reference count of the variable container it points to is decreased by one. So, if we unset variable $a after running the above code, the reference count of the variable container that $a and element "1" point to gets decreased by one, from "2" to "1". This can be represented as:

Örnek 9 Unsetting $a

(refcount=1, is_ref=1)=array (
   0 => (refcount=1, is_ref=0)='one',
   1 => (refcount=1, is_ref=1)=...
)

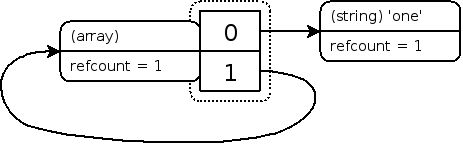

Or graphically

Cleanup Problems

Although there is no longer a symbol in any scope pointing to this structure, it cannot be cleaned up because the array element "1" still points to this same array. Because there is no external symbol pointing to it, there is no way for a user to clean up this structure; thus you get a memory leak. Fortunately, PHP will clean up this data structure at the end of the request, but before then, this is taking up valuable space in memory. This situation happens often if you're implementing parsing algorithms or other things where you have a child point back at a "parent" element. The same situation can also happen with objects of course, where it actually is more likely to occur, as objects are always implicitly used "by reference".

This might not be a problem if this only happens once or twice, but if there are thousands, or even millions, of these memory losses, this obviously starts being a problem. This is especially problematic in long running scripts, such as daemons where the request basically never ends, or in large sets of unit tests. The latter caused problems while running the unit tests for the Template component of the eZ Components library. In some cases, it would require over 2 GB of memory, which the test server didn't quite have.
