imagepolygon

(PHP 4, PHP 5)

imagepolygonÇokgen çizer

Açıklama

bool imagepolygon ( resource $resim , array $noktalar , int $nokta_sayısı , int $renk )

imagepolygon() belirtilen resim üzerine çokgen çizer.

Değiştirgeler

resim

imagecreatetruecolor() gibi bir resim oluşturma işlevinden dönen bir resim verisi.

noktalar

Çokgenin köşeleri. Dizinin yerleşimi şöyledir:

noktalar[0] = x0
noktalar[1] = y0
noktalar[2] = x1
noktalar[3] = y1

nokta_sayısı

Köşe sayısı.

renk

imagecolorallocate() tarafından oluşturulmuş bir renk tanıtıcısı.

Dönen Değerler

Başarı durumunda TRUE, başarısızlık durumunda FALSE döner.

Örnekler

Örnek 1 - imagepolygon() örneği

<?php
// Bir resim taslağı oluşturalım
$resim imagecreatetruecolor(400300);

// Çokgenin rengini ayarlayalım
$renk imagecolorallocate($resim255255255);

// Çokgeni çizelim
imagepolygon($resim, array(

0,   0,

100200,

300200

),

3,

$renk);

// Resmi tarayıcıya gönderelim
header('Content-type: image/png');

imagepng($resim);
imagedestroy($resim);
?>

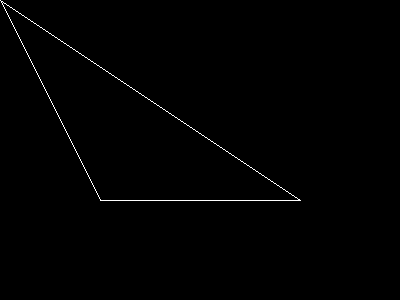

Yukarıdaki örnek şuna benzer bir çıktı üretir:


Ayrıca Bakınız

add a note add a note

User Contributed Notes 5 notes

up
1
tatlar at yahoo dot com
8 years ago
Function to get 5-sided polygon (pentagon) or star (pentagram) co-ords.
<?php
function _makeFiveSidedStar( $x, $y, $radius, $shape='polygon', $spiky=NULL ) {

$point = array() ; // new array

$angle = 360 / 5 ;

$point[0]['x'] = $x ;

$point[0]['y'] = $y - $radius ;

$point[2]['x'] = $x + ( $radius * cos( deg2rad( 90 - $angle ) ) ) ;

$point[2]['y'] = $y - ( $radius * sin( deg2rad( 90 - $angle ) ) ) ;

$point[4]['x'] = $x + ( $radius * sin( deg2rad( 180 - ( $angle*2 ) ) ) ) ;

$point[4]['y'] = $y + ( $radius * cos( deg2rad( 180 - ( $angle*2 ) ) ) ) ;

$point[6]['x'] = $x - ( $radius * sin( deg2rad( 180 - ( $angle*2 ) ) ) ) ;

$point[6]['y'] = $y + ( $radius * cos( deg2rad( 180 - ( $angle*2 ) ) ) ) ;

$point[8]['x'] = $x - ( $radius * cos( deg2rad( 90 - $angle ) ) ) ;

$point[8]['y'] = $y - ( $radius * sin( deg2rad( 90 - $angle ) ) ) ;
    if(
$shape == 'star' ) {
        if(
$spiky == NULL ) $spiky = 0.5 // degree of spikiness, default to 0.5

$indent = $radius * $spiky ;

$point[1]['x'] = $x + ( $indent * cos( deg2rad( 90 - $angle/2 ) ) ) ;

$point[1]['y'] = $y - ( $indent * sin( deg2rad( 90 - $angle/2 ) ) ) ;

$point[3]['x'] = $x + ( $indent * sin( deg2rad( 180 - $angle ) ) ) ;

$point[3]['y'] = $y - ( $indent * cos( deg2rad( 180 - $angle ) ) ) ;

$point[5]['x'] = $x ;

$point[5]['y'] = $y + ( $indent * sin( deg2rad( 180 - $angle ) ) ) ;

$point[7]['x'] = $x - ( $indent * sin( deg2rad( 180 - $angle ) ) ) ;

$point[7]['y'] = $y - ( $indent * cos( deg2rad( 180 - $angle ) ) ) ;

$point[9]['x'] = $x - ( $indent * cos( deg2rad( 90 - $angle/2 ) ) ) ;

$point[9]['y'] = $y - ( $indent * sin( deg2rad( 90 - $angle/2 ) ) ) ;
    }

ksort( $point ) ;

$coords = array() ;  // new array

foreach( $point as $pKey=>$pVal ) {
        if(
is_array( $pVal ) ) {
            foreach(
$pVal as $pSubKey=>$pSubVal ) {
                if( !empty(
$pSubVal ) ) array_push( $coords, $pSubVal ) ;
            }
        }
    }
    return
$coords ;
}
$values = _makeFiveSidedStar( 100, 100, 50, 'star' ) ;
?>
up
1
glowell at flash dot net
9 years ago
Something to be aware of, ImagePolygon appears to convert the array of points passed to it from whatever format they may have been in originally into integers. This means if you pass it an array of floats (after running a rotation routine for example) the floats will be changed to integers INSIDE THE ORIGINAL ARRAY.

An extreme example: if for some reason you had an unit-sized polygon pt-array ( -1<x|y<1 for easy scaling purpose for instance) and for some reason your code calls imagepolygon on it (why? it'd only be a dot anyway) the array would be unusable after that (all either 1s, 0s or -1s). Scaling a unit-sized array, drawing it and then scaling it again will also may have a different result than expected.

Obviously, if the array in its original state is important to your code, it should use a copy of the original array for this call. If your code draws the same polygon multiple times but resizes it for different cases, you should have each size be created off an original template rather than adjusting a single polygon array.
up
0
licson0729 at gmail dot com
2 years ago
Function to draw a n-sided regular polygon

<?php
$img
= imagecreatetruecolor(1360,768);

function
regularPolygon($img,$x,$y,$radius,$sides,$color)
{

$points = array();
    for(
$a = 0;$a <= 360; $a += 360/$sides)
    {

$points[] = $x + $radius * cos(deg2rad($a));

$points[] = $y + $radius * sin(deg2rad($a));
    }
    return
imagepolygon($img,$points,$sides,$color);
}

regularPolygon($img,1360/2,768/2,300,8,0xffffff);//Test draw

header('Content-type: image/png');
imagepng($img);
imagedestroy($img);
?>
up
0
jsnell at networkninja dot com
13 years ago
Here are some handy routines for rotation and translation of polygons.  Scaling could be added easily as well.

<?php
function translate_point(&$x,&$y,$angle,$about_x,$about_y,$shift_x,$shift_y)
{

$x -= $about_x;

$y -= $about_y;

$angle = ($angle / 180) * M_PI;
/* math:
[x2,y2] = [x,  *  [[cos(a),-sin(a)],
           y]      [sin(a),cos(a)]]
==>
x = x * cos(a) + y*sin(a)
y = x*-sin(a) + y*cos(a)
*/


$new_x = $x * cos($angle) - $y * sin($angle);

$new_y = $x * sin($angle) + $y * cos($angle);

$x = $new_x+ $about_x + $shift_x ;

$y = $new_y + $about_y + $shift_y;
}

function
translate_poly($point_array, $angle, $about_x, $about_y,$shift_x,$shift_y)
{

$translated_poly = Array();
    while(
count($point_array) > 1)
    {

$temp_x = array_shift($point_array);

$temp_y = array_shift($point_array);

translate_point($temp_x, $temp_y, $angle, $about_x, $about_y,$shift_x, $shift_y);

array_push($translated_poly, $temp_x);

array_push($translated_poly, $temp_y);
    }
    return
$translated_poly;
}
?>
up
-2
licson0729 at gmail dot com
2 years ago
Here's a function to draw a n-sided star:

<?php
function drawStar($img,$x,$y,$radius,$sides,$color,$spikness=0.5)
{

$point =array();

$t = 0;
    for(
$a = 0;$a <= 360;$a += 360/($sides*2))
    {

$t++;
        if(
$t % 2 == 0)
        {

$point[] = $x + ($radius * $spikness) * cos(deg2rad($a));

$point[] = $y + ($radius * $spikness) * sin(deg2rad($a));
        }else{

$point[] = $x + $radius * cos(deg2rad($a));

$point[] = $y + $radius * sin(deg2rad($a));
        }
    }
    return
imagepolygon($img,$point,$sides*2,$color);
}
?>
